Institutional Pen Plotters

What is an institutional pen plotter? It represents open-source, digital-to-physical infrastructure engineered specifically for higher education, STEAM laboratories, cultural preservation centers, and architecture departments. This collection bridges computational design, complex mathematical topography, and physical traditional media. Ranging from our highly accurate UUNA TEK 3.0 (A3–A0) platforms to the precision-calibrated ArtStation 2436 and grand-scale 2x2M industrial flatbeds, these robotic systems provide predictable, highly repeatable vector results across demanding research, archiving, and multi-material workflows.

Core Features:

  • Enterprise Open Workflow Integration: Native G-code execution via specialized DrawCore V1.3 or Industrial GRBL boards. Systems smoothly ingest .SVG and .DXF payloads directly from open coding frameworks (Python, Processing, P5.js) and specialized software suites (Rhino, AutoCAD, Grasshopper).
  • Institutional Structural Integrity: Built on heavy industrial steel H-frames, anti-deflection gantries, and reinforced CoreXY architectures. These machines utilize high-torque 42/57 stepper motors and linear guide rails to guarantee a zero-maintenance mechanical lifecycle under heavy laboratory use.
  • Asset-Level Repeatability & Data Physicalization: Yields exceptional positioning repeatability up to $\pm0.02\text{mm}$ (on UUNA TEK 3.0 A3/A2 models) and ultra-fine $0.0125\text{mm}$ motion resolution (on the ArtStation series), allowing research teams to turn complex big data datasets into flawless physical line plots.
  • Comprehensive Enterprise Protection Ecosystem: Every procurement package includes 100% preassembled turnkey deployment, free global freight, and our industry-leading Lifetime Care Guarantee backed by direct technical onboarding pipelines for university IT and lab administrators.

Institutional & Workflow Solutions

  • For Museums, Galleries & Public Art Spaces: Exhibition-Ready Performance

    Empower installation-scale installations and continuous, live public art commissions. Designed to withstand the rigorous demands of exhibition environments, these systems serve as standalone durational performance art installations.

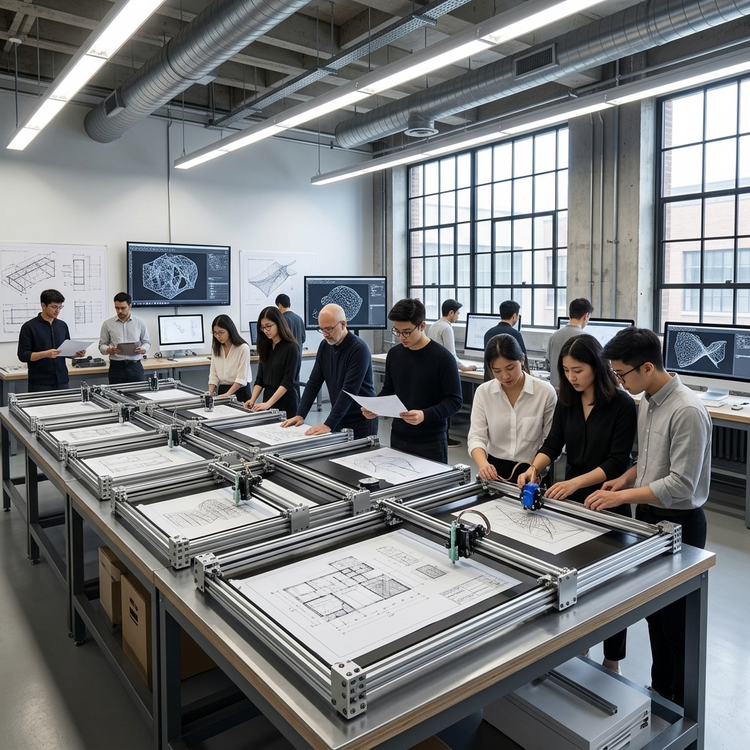

  • For Universities & Research Labs: Durable, Multi-User Infrastructure

    Equip your digital-to-physical infrastructure with reliable, pedagogical-grade hardware. Built to survive the rigor of student labs, the ArtStation series features open hardware accessibility, robust safety-stops, and low-maintenance parts, maximizing your educational ROI while bridging the gap between STEM and STEAM.

  • For Contemporary Artists & Creative Coders: Zero-Friction Code Pipelines

    Stop wrestling with clunky, proprietary software. ArtStation is built for the modern developer-artist. It accepts pure, uncompressed SVG layouts and standard G-code. It interfaces seamlessly with custom script setups from Python, Processing, vsketch, and Grasshopper. No mandatory cloud subscriptions, no ecosystem lock-in—just absolute control over your vectors.

Feature 1:

Exhibition-Grade Generative Art System (0.0125mm Native Resolution)

The Technical Reality: Generative artwork scales by detail. Standard commercial drawing machines introduce micro-backlash, causing microscopic overlapping lines to blur or tear the paper fibers.

The UUNA TEK® Solution: Engineered with a native 0.0125 mm minimum motion resolution and an absolute mechanical tolerance of ~0.1 mm, the ArtStation series turns hyper-complex algorithmic grids, dense mathematical moiré patterns, and chaotic chaotic-attractor vectors into razor-sharp physical lines. Your artwork retains its crisp geometric definition even under gallery-grade diagnostic lighting.

Feature 2:

Studio-Grade Continuous Operation (Zero-Drift 24/7 Duty Cycle)

The Technical Reality: A standard plot can easily take 18 to 36 hours of continuous travel. On cheap DIY belt-driven kits, motors overheat, chips skip steps, and lines drift mid-way through a $2,000 piece of archival paper.

The UUNA TEK® Solution: Designed as institutional art production infrastructure, the ArtStation series incorporates heavy-duty stepper motors paired with active heat-dissipation cooling blocks and an upgraded H-SE industrial motherboard. It is rated for continuous, unattended operation—meaning it can run all night in a dark studio or perform live throughout a month-long museum exhibition without a single millimeter of spatial deviation.

Feature 3:

High-Stability CoreXY Architecture & Industrial Linear Guides

The Technical Reality: Traditional cantilever or X-Y gantry plotters shake violently at high vector transition speeds, generating "ghosting" artifacts and wavy lines.

The UUNA TEK® Solution: Built upon a reinforced CoreXY motion framework, both motors are securely stationary at the base, drastically reducing the moving mass of the gantry. Guided by high-rigidity steel linear rails and fiberglass-reinforced timing belts, the tool-head cruises up to 280 mm/s (11 in/sec) with smooth, vibration-free vector acceleration.

Feature 4:

Multi-Material Artistic Compatibility (70°–90° Adaptive Angle Tool-Head)

The Technical Reality: Human hands hold pens at angles; standard plotters force pens perfectly vertical (90°), which ruins fountain pen nibs, shreds fine-liners, and makes dry mediums like charcoal impossible to feed.

The UUNA TEK® Solution: Featuring a proprietary 70°–90° adjustable pen angle module and a robust 10mm controlled Z-axis tool-lift system, ArtStation gives the artist absolute mechanical control over how the medium meets the canvas. It provides the exact structural pressure control required to plot using delicate technical fineliners, quick-dry fountain inks, heavy paint markers, soft graphite, or fragile vine charcoal sticks.

Feature 5:

Open Workflow Integration & API-Driven Pipelines

The Technical Reality: Nothing frustrates a creative coder more than being locked into a buggy, cloud-dependent proprietary app that constantly crashes on large SVG files.

The UUNA TEK® Solution: UUNA TEK® is built on open vector protocols. It connects directly via a latency-free USB control line and reads native SVG layouts and industrial execution G-code directly. It serves as a seamless physical compiler for scripts coming straight out of Python, Processing, vsketch, openRCA, Inkscape, Adobe Illustrator, or parametric CAD / Grasshopper frameworks.

UUNA TEK® Institutional Pen Plotters: Complete Product Line Comparison

Technical Specifications UUNA TEK 3.0 (A3) UUNA TEK 3.0 (A2) UUNA TEK 3.0 (A1) UUNA TEK 3.0 (A0) UUNA TEK ArtStation 1824 UUNA TEK ArtStation 2436 UUNA TEK 3.0 (2x1.25M) UUNA TEK 3.0 (2x2M)
System Classification Desktop Compact Medium-Format Large-Format Full-Scale Workstation Premium Studio Institutional Flagship Industrial Prototyping Heavy-Duty Mega Flatbed
Effective Plotting Area 420 X 297 mm 594 X 420 mm 841 X 594 mm 1189 X 841 mm 610 X 457 mm (24" X 18") 914 X 610 mm (36" X 24") 2000 X 1250 mm 2000 X 2000 mm
Motion Architecture H-Frame H-Frame Reinforced H-Frame Anti-Deflection Gantry CoreXY Structure CoreXY Structure Anti-Deflection Gantry Dual-Drive Gantry
Maximum XY Travel Speed 20,000 mm/min 20,000 mm/min 20,000 mm/min 20,000 mm/min 16,800 mm/min 16,800 mm/min 20,000 mm/min 20,000 mm/min
Minimum Motion Resolution 0.02 mm 0.02 mm 0.05 mm 0.05 mm 0.0125 mm 0.0125 mm 0.1 mm 0.1 mm
Mechanical Precision (XY) +-0.02 mm +-0.02 mm +-0.05 mm +-0.05 mm +-0.1 mm +-0.1 mm +-0.1 mm +-0.1 mm
Max Substrate Thickness 30 mm 30 mm 30 mm 30 mm 18 mm (0.7 in) 18 mm (0.7 in) 40 mm (Modified) 40 mm (Modified)
Vertical Pen Travel 10 mm 10 mm 10 mm 10 mm 10 mm (0.4 in) 10 mm (0.4 in) 10 mm 10 mm
Tool Angle Control 0-90 Degree Variable 0-90 Degree Variable 0-90 Degree Variable 0-90 Degree Variable 70-90 Degree Adjustable 70-90 Degree Adjustable 0-90 Degree Variable 0-90 Degree Variable
Frame Materials Q235 Steel + Al Heavy Steel Frame Reinforced Dual-Beam Anti-Deflection Gantry Al Profile + Stainless Steel Al Profile + Stainless Steel Anti-Deflection Gantry Anti-Deflection Gantry
Base Plate Material 2mm Rigid Steel 2mm Rigid Steel 2mm Rigid Steel 2mm Rigid Steel Magnetic Steel Plate Magnetic Steel Plate 8mm Tempered Glass 8mm Tempered Glass
Motherboard & Control GRBL Hardware GRBL Hardware GRBL Hardware Industrial GRBL DrawCore V1.3 DrawCore V1.3 Industrial GRBL Industrial GRBL
System Firmware GRBL Native GRBL Native GRBL Native GRBL Industrial EBB Firmware EBB Firmware GRBL Industrial GRBL Industrial
Connectivity USB / SD Card USB / SD Card USB / SD Card USB / SD Card USB USB USB / Standalone USB / Standalone
Power Adapter Output DC 12V DC 12V DC 12V DC 24V DC 24V DC 24V DC 24V Industrial DC 24V Industrial
Device Physical Weight 11 kg 17.5 kg 32 kg 48 kg 11 kg ~16 kg ~110 kg ~165 kg
Overall Footprint 570 X 440 mm 740 X 570 mm 1010 X 740 mm 1370 X 1010 mm 560 X 840 mm ~860 X 1140 mm 2400 X 1650 mm 2400 X 2400 mm
Deployment Status 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled 100% Preassembled

FAQ

Q1: What makes a robotic drawing system qualify as an "institutional-grade" asset?

A: Institutional-grade systems are distinguished by their structural engineering and long-term durability under continuous use. While standard hobbyist plotters use lightweight frames, the UUNA TEK 3.0 Institutional Series is constructed with Q235 Carbon Steel and Heavy Steel H-Frames, scaling up to an Anti-Deflection Gantry Mega Frame for our 2x1.25M and 2x2M models. These systems are designed to withstand heavy, multi-user operation in university labs and public museums without mechanical fatigue.

Q2: Can these plotters run safely and completely unattended during long public installations?

A: Yes. To meet strict university safety and museum operational standards, every machine features an Async Standalone Mode. By utilizing high-gain data pipelines via USB or offline SD card execution, the ArtStation 2436 and UUNA TEK 3.0 lines operate seamlessly without being tethered to a dedicated computer. This eliminates the risk of mid-exhibition computer crashes, while integrated Nylon Silent Drag-Chains keep moving cables perfectly shielded.

Q3: What vector file formats and design environments are natively supported?

A: UUNA TEK platforms operate on a reliable, open hardware architecture using standard G-code data command protocols. This ensures your department avoids proprietary software lock-ins. The systems natively ingest SVG, DXF, PLT, and PDF files directly from creative coding frameworks (like Python or Processing) and professional computational design suites including AutoCAD, Rhino, Revit, SolidWorks, Inkscape, and LightBurn.

Q4: What is the mechanical precision and repeatability of these systems across large-format canvas surfaces?

A: For critical data physicalization and complex architectural schematics, precision is non-negotiable. The UUNA TEK 3.0 A3 and A2 systems achieve a Repeat Positioning Accuracy of +-0.02mm utilizing rigid linear guide rails. For massive scale, our 2-meter heavy-duty flatbeds maintain a rigid +-0.1mm precision across their entire expansive workspace, prevented from drifting by high-torque 57 stepper motors and dual-drive rack and pinion systems.

Q5: Is the operating acoustic footprint quiet enough for public museum galleries or university libraries?

A: Yes, noise control is built directly into our kinematics. The UUNA TEK 3.0 full-scale workstations operate at under 60dB blending quietly into academic or laboratory settings. For ultra-serene gallery spaces, the ArtStation 2436 runs with highly optimized, quiet motor drivers at under 55dB, keeping the public's focus entirely on the performative spectacle of the mechanical drawing process.

Q6: How do these plotters handle varied paper weights and non-traditional multi-material substrates?

A: The collection supports a vast array of media. The UUNA TEK 3.0 A3–A0 systems handle physical materials up to $30\text{mm}$ thick on their rigid steel base plates. For heavy architectural panels, wood sheets, or dense polymers, the industrial 3.0 2x1.25M and 2x2M flatbeds feature a modified clearance allowing direct plotting on substrates up to 40mm thick.

Q7: What types of technical pens, drawing instruments, and archival markers can be clamped?

Direct Answer: Institutional plotters must feature highly adaptable tool clamping systems capable of holding variable weight pens, markers, or technical instruments across both flexible and thick rigid substrates.

  • The UUNA TEK® Edge: The ArtStation line features an adjustable 70-90 degree pen angle system with an internal pen clip supporting drawing instruments up to 16mm in diameter and material thicknesses up to 18mm. The UUNA TEK 3.0 series upgrades to a Heavy-Duty Buffered Carriage or an Industrial Heavy-Load Z-Axis Carriage0-90 degree variable range) supporting substrates up to 30mm (A3-A0) and up to 40mm on the 2M Mega Flatbeds—perfect for plotting directly onto thick canvas frames, wood panels, cardboard, or heavy watercolor sheets.

Q8: What are the electrical power requirements for integrating these units into older campus infrastructures?

A: Every machine is built with high-efficiency electrical steps and features an AC 100V – 240V worldwide compatible universal input power adapter. Internal voltage is converted to a highly secure DC 12V or DC 24V line. Power draw is exceptionally efficient: the 3.0 A3 pulls a minimal 20W, while our largest industrial gantry—the 3.0 2x2M—maxes out at a modest 90W under full acceleration (20,000 mm/min max speed).

Q9: How much maintenance do these robotic systems require from lab technicians?

A: Virtually zero. Because our machines are built utilizing dust-resistant linear rails, premium aluminum profiles, and sealed industrial bearings, they do not require complex calibration routines. The primary task for your lab staff is simply ensuring your chosen writing instruments do not run out of ink during high-volume print cycles.

Q10: How does UUNA TEK protect institutional investments and streamline university procurement?

A: We understand B2B and institutional grant guidelines. Every machine in this collection arrives 100% preassembled as a turnkey out-of-the-box solution, eliminating tedious assembly by faculty staff. Purchases are fully backed by Free Worldwide Shipping, a 30-Day Return Policy, a Lifetime Care Guarantee, and direct 1-on-1 technical onboarding consultations to assist your IT and lab administrators.
